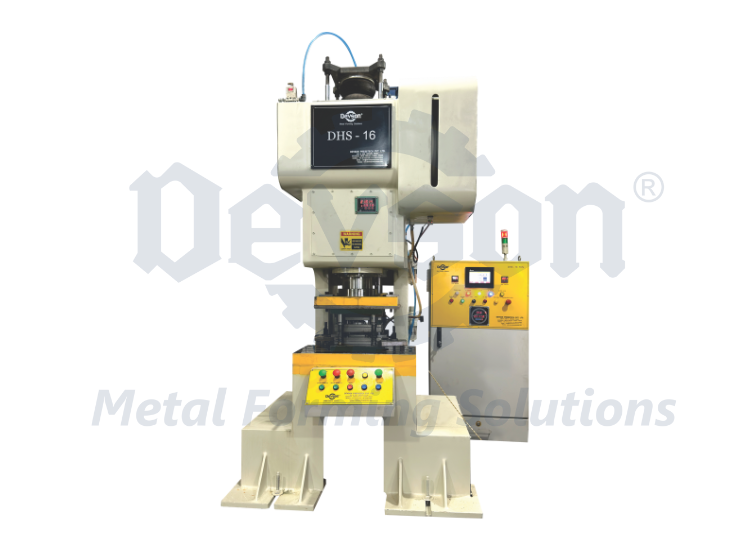

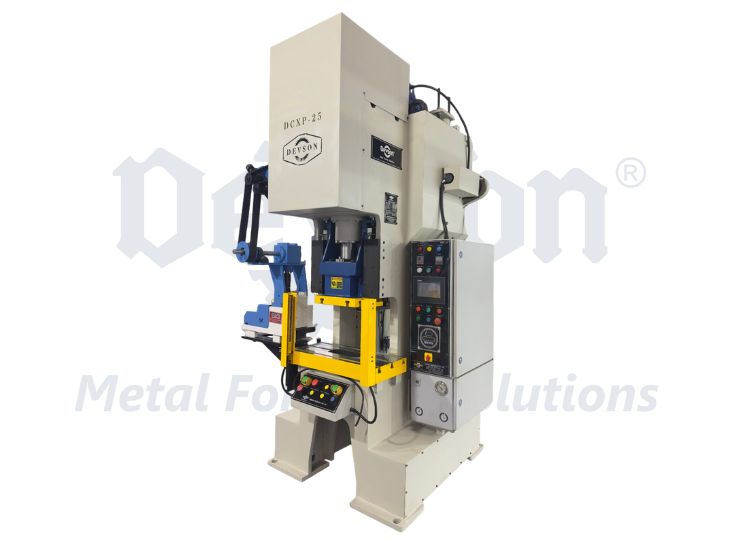

Engineered for precision and productivity, our Cross Shaft Plunger Guided Press is designed to outperform traditional non-plunger presses. Built for high-speed operations with unmatched stability and accuracy, this ungeared, plunger-guided system ensures minimal deflection in perpendicular, consistent stroke alignment, and superior die life — making it ideal for continuous, high-volume production.
Key Features
- Plunger Guided System – Ensure precise ram alignment and minimal lateral movement
- Main Drive – Equipped with eccentric shaft as main drive shaft. Eccentric shafts assure minimal shaft deflection compared to traditional crank shaft designs. The oil bath of the main shaft and all bearings helps to reduce friction and enables smooth operations. It is very well balanced to reduce vibration for excellent stability and accuracy.
- Bearing - Entire main shaft runs on anti-friction bearings make NTN & NACHI Japan.
- Lubrication – Motorized lubrication of oil and grease is used with pressure sensors for different parts accordingly.
- High-Speed Performance – Perfect for a progressive die and precision stamping
- Heavy Duty Frame – Built to handle high-speed loads with reduced vibration
- Slide – Center GIBB Design
- Encoder Based Crank Angle Indicator And Controller– Equipped with 12 digital - came for very precise programming for different operations of presses, like pneumatic pilot release setting, Feeder angle setting & ensures stopping the machine at TDC at various speeds up to 600 SPM.
Standard Features
- PLC Based Electric Control Panel
- Touch screen fault finding HMI display
- Hydraulic overload safety - SANDSUN TAIWAN
- Motorized grease pump & motorized lubrication pump with proximity sensor & pressure Switch
- Crank angle indicator – Digital – Programmable for servo feeders
- Wheel balanced for smooth running
- Pneumatic counter balancers – Air Bellow (FIRESTONE USA)
- Digital & Analog pressure sensor for pneumatic clutch and counter balancers
- Solenoid valve, FRL unit, Pneumatics – SMC
- Main motor with fwd./rev controller.
- Safety light curtain
- 2 nos of misfeed socket
- Die height indicator digital in 63 Ton
- Motorized slide adjustment with imported disc brake motor in 63 Ton
- Anti – Vibration pads
Optional Features
- Foot Switch
- Decoiler
- Straightners
- Feeders
