DCX Series - C Frame Cross Shaft Press

  • Home
  • DCX Series - C Frame Cross Shaft Press

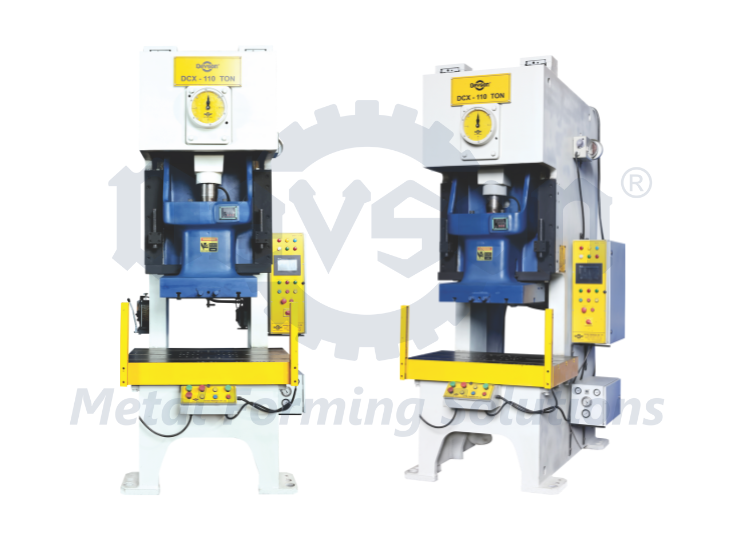

DCX Series C Frame-Single Point Suspension Cross Shaft Presses are Highly Rigid with Minimum Angular Deflection fitted with Pneumatic Clutch and Broke.

Highlights

  • Highly Rigid Frame designed virtually eliminates angular deflection.
  • High Tool Life and reduces cost of tool maintenance.
  • Reduced Noise and Vibration, Gear Transmission Runs in Oil Bath.
  • High Accuracy Transmission Gears & High Rigidity Forged Crank Shaft Ensures Press Lonq Life and Accuracy.
  • Automatic Grease Lubrication with default monitor ensures the operation reliability.
  • Wide Slide and Bolster Area
  • Fly wheel balancing is being done.

Standard Features

  • Main Motor with Fwd. /Rev Controller
  • Hydraulic Overload Protection
  • Counter Balancers
  • Spore Cam -6 Set
  • Motorized Slide Adjustment
  • 7” Fault Finding HMI with Plc controlled Panel
  • Safely Light curtain
  • Production Counter with Batch Counting System
  • 2 no's of Miss Feed Socket
  • Slide Knockout Device
  • Digital Shut Height Indicator
  • Encoder Based Programmable Cam System

Optional Features

  • Variable Speed Drive
  • Die Cushion System
  • Anti-vibration Pads
  • Encoder Based Programmable Cam System
  • Foot Switch
  • Quick Die Change System
  • Load Monitor Device

Specifications

MODEL   DCX-25 DCX-35 DCX-45 DCX-63
- - G UG HG G UG HG G UG HG G UG
Stroke Length Fix mm 80 40 50 90 40 60 110 50 60 130 50
Rating Point mm 3.2 1 2.3 3.2 1.2 2.3 3.2 1.5 2.3 4 1.5
SPM FIX 90 150 140 80 150 120 70 140 110 60 130
VARIABLE 60 ~ 90 100 ~ 200 80 ~ 140 60 ~ 90 100 ~ 200 80 ~ 120 50 ~ 80 100 ~ 180 80 ~ 110 50 ~ 70 100 ~ 150
Die Height mm 230 250 270 300
Slide Adjustment mm 50 50 60 70
Slide Area mm 330 X 250 380 X 300 430 X 350 500 X 400
Shank Hole mm 40 40 50 50
Bolster Area mm 700 X 320 780 X 400 840 X 440 900 X 520
Bolster Thickness mm 80 85 110 120
Slide Adjustable Motor Kw - - - 0.4
Floor to Top of Bolster mm 800 800 800 860
Clear Distance B/w upright mm 430 490 495 580
Main Motor FIX 3 3 5 7.5
VARIABLE 5 5 7.5 10
Photo Safety Guards   Installed Installed Installed Installed
Motorised Grease Lubrication   CENLUB CENLUB CENLUB CENLUB
Bushes & Liners   Phos Bronze Phos Bronze Phos Bronze Phos Bronze
DIE CUSHION (OPTIONAL)
Die Cushion Capacity Ton - 3.5 6
Die Cushion Stroke mm - 50 70
Die Cushion Effective Area Area - 300 X 210 380 X 260

Specifications

MODEL   DCX-80 DCX-110 DCX-160 DCX-200 DCX-250
- - G G G G G
Stroke Length Fix mm 150 160 200 220 250
Rating Point mm 4.5 5 6 6 6
SPM FIX 60 50 40 35 30
VARIABLE 40 ~ 70 40 ~ 60 30 ~ 50 25 ~ 45 25 ~ 40
Die Height mm 330 360 400 450 450
Slide Adjustment mm 80 90 100 110 120
Slide Area mm 560 x 460 650 x 520 720 x 580 860 x 650 960 x 720
Shank Hole mm 50 60 65 80 80
Bolster Area mm 1050 x 600 1150 x 680 1250 x 760 1400 x 840 1500 x 900
Bolster Thickness mm 140 140 160 180 180
Slide Adjustable Motor kw 0.4 0.4 0.75 1.5 1.5
Floor to Top of Bolster mm 900 900 900 1000 1000
Clear Distance B/w upright mm 620 670 760 900 940
Main Motor FIX 10 10 15 20 25
VARIABLE 15 15 20 25 30
Photo Safety Guards   Installed Installed Installed Installed Installed
Motorised Grease Lubrication   CENLUB CENLUB CENLUB CENLUB CENLUB
Bushes & Liners   Phos Bronze Phos Bronze Phos Bronze Phos Bronze Phos Bronze
DIE CUSHION (OPTIONAL)
Die Cushion Capacity Ton 6 8 10 14 14
Die Cushion Stroke mm 70 90 100 110 120
Die Cushion Effective Area mm 410 x 260 480 x 300 540 x 340 640 x 440 740 x 540
